Miro 20-Base Strut-4 Strut Style Pipe Support

Miro 20-Base Strut-4 Strut Style Pipe Support

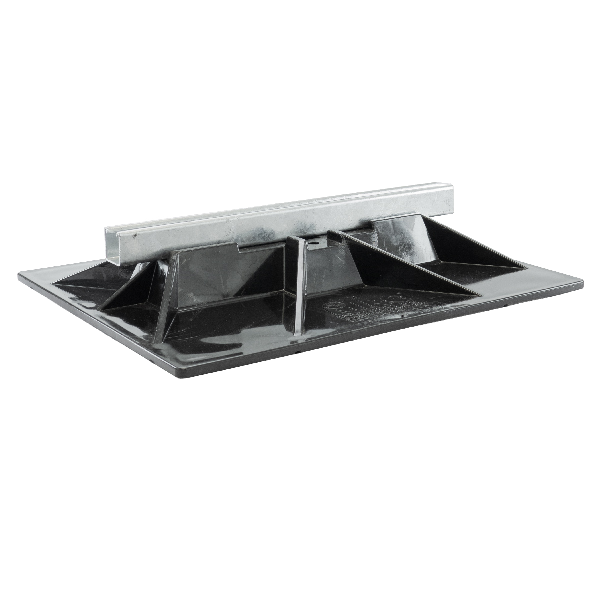

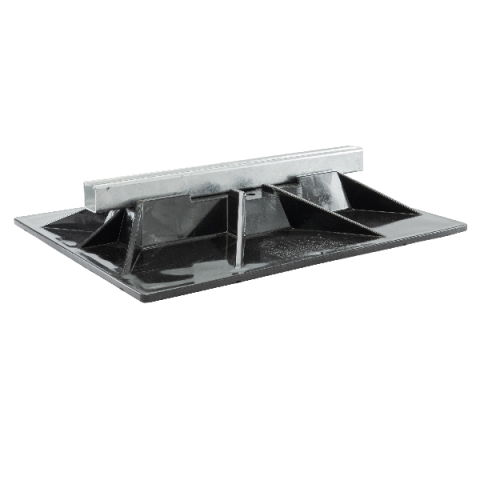

The Miro 20-Base Strut-4 Strut Style Pipe Support Style Pipe Support uses struts to support roof-mounted gas pipes, electrical conduit, solar piping or other rooftop piping. These supports are designed to handle thermal expansion and contraction of the pipes to prevent damage to you roofing membrane.  Rooftop pipes will rest on top of the strut system that is made of hot-dipped galvanized steel.  The pipe support base is made of a polycarbonate resin and all the threads and metal parts are made from stainless steel to further avoid rust and corrosion. This pipe stand has a maximum pipe clearance of 4.125″.

Features

• Base Material – Polycarbonate
• Size – Deck base is 19″ by 23” and the strut is 1-5/8″ by 13/16″ and 20″ long
• Max Pipe Clearance – 4.125″ (4-1/8″)
• Max Load Weight – 960 lbs. per pipe stand
• Spacing – Miro recommends spacing to not exceed 10′ centers depending on weight load

Downloads

Specification and Drawing
