Babcock Davis 36×30 Steel Roof Hatch – White

$560.00

Model# BRHPW36X30S1T

Description

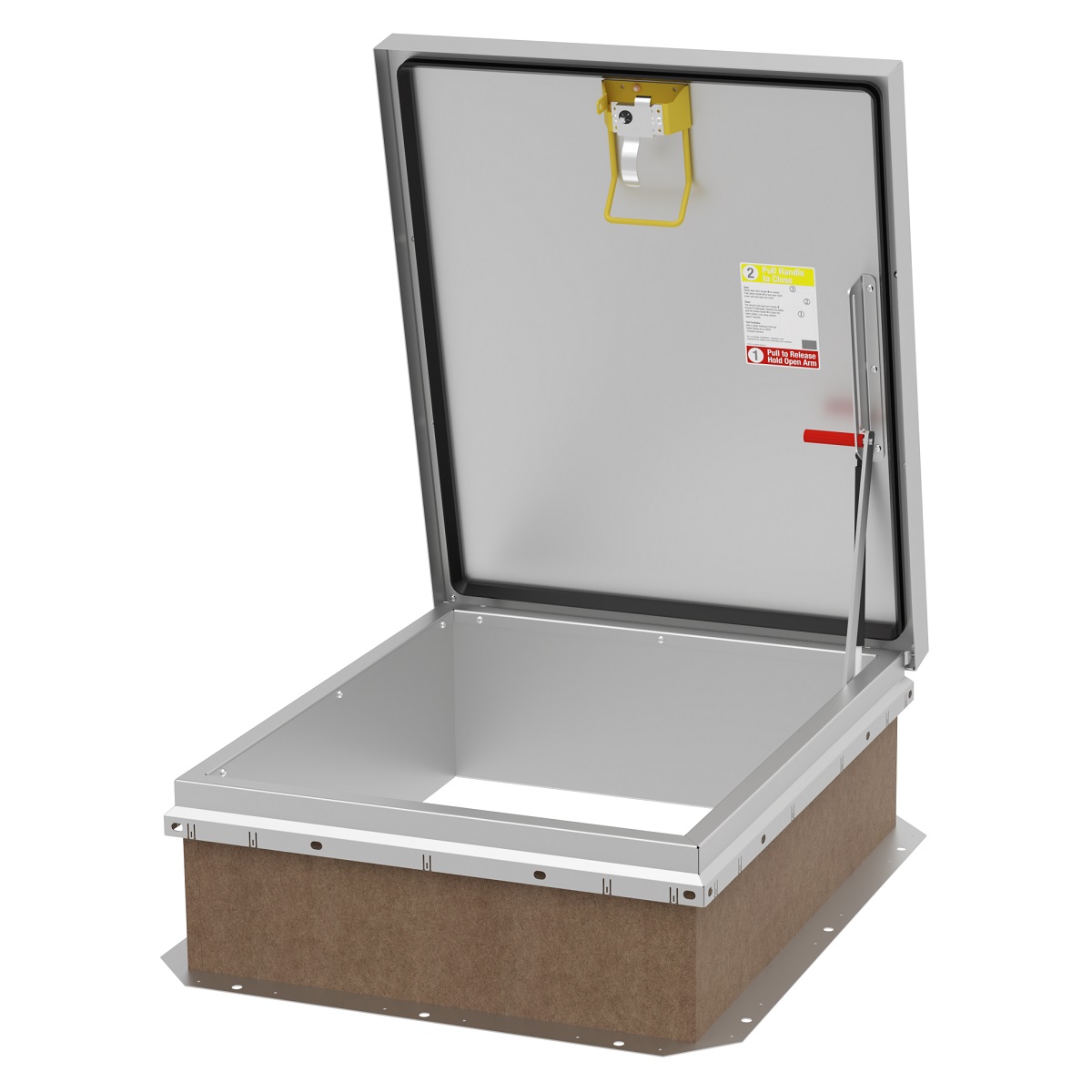

Babcock Davis 36×30 Steel Roof Hatch – White

The Babcock Davis 36×30 Steel Roof Hatch – White (steel with white powder coat), model # BRHUW36X30S1T, provides safe access to roof areas on your building. For ultimate corrosion resistance and outstanding exterior durability.

Features:

  • 36″ x 30″ Inside Measurement
  • Steel: 14 gauge Galvanneal Steel
  • Finish: Powder Coat
  • Color: High Reflective White
  • Cover Formed metal cover with liner, stiffened to withstand a live load of 40 psf with a max deflection of 1/150 the span.
  • Curb Single wall curb with EZ tab counter-flash and mounting flange with 5/8 inch and 3/16 inch holes
  • Insulation 1 inch fiberboard in curb, 1 inch polystyrene in cover.
  • Gasket Extruded EPDM adhesive backed gasket seal, continuous around cover.
  • Spring/Hinge Assembly Zinc plated steel tamper-proof hinges contained within spring assembly, includes steel compression springs
  • Hold Open Arm Zinc plated steel automatic hold open arm locks cover in open position.
  • Latch Zinc plated steel latch with exterior and interior turn handles and padlock hasps.
  • 20 psf wind uplift for lengths ≤60 inches with slam latch
  • 90 psf wind uplift for lengths >60 inches with 2-point rotary latch
  • Warranty Five (5) years

Model # BRHUW36X30S1T

Downloads:

Architect Drawing

Product Data Sheet

Installation Instruction

Click ‘here’ to see more Babcock-Davis roof hatches and accessories available through CRS and ‘here’ to go to the manufacturer’s site!

If you have any questions about this item or would like special pricing for bulk orders or custom sizes, please call Commercial Roofing Specialties at 1-(800) 267-2308 and ask for an E-Commerce Representative.

Additional information

Weight 160 lbs
Dimensions 40 × 34 × 17 in
