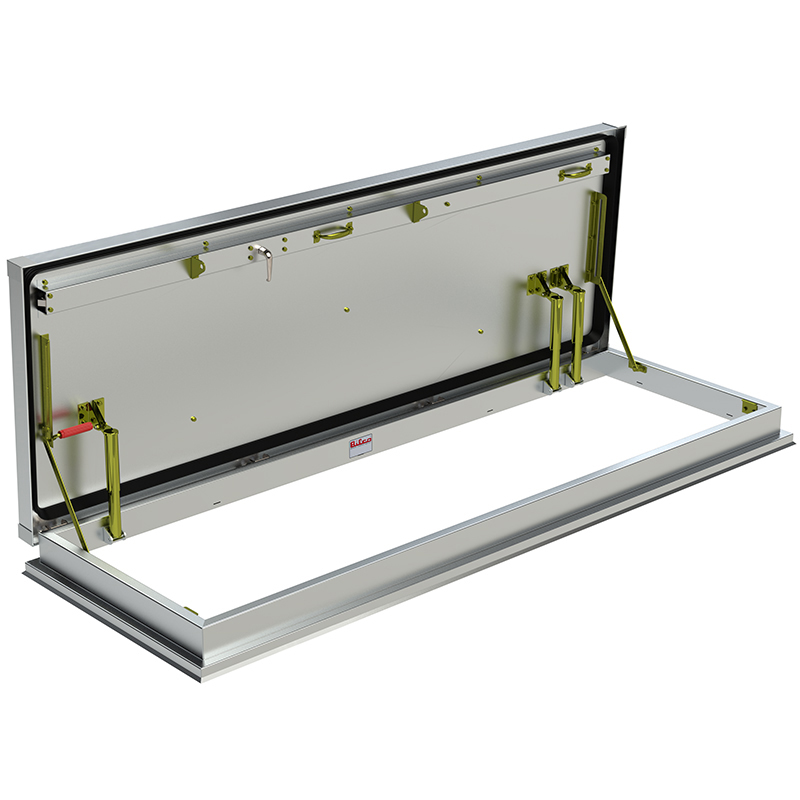

Bilco L-50VM VersaMount Hatch

$3,215.00

Allow 2-3 weeks for delivery

Bilco L-50VM VersaMount Hatch

The Bilco L-50VM VersaMount Hatch allows you to replace a damaged roof hatch without re-roofing. The low-profile VersaMount curb features a built-in flange and apron and innovative anchor clip system to ensure a fast, secure, and weather-tight installation over an existing curb.

Features:

  • For installation on an exiting curb with rough opening of 30″ x 96″
  • Built-in apron simplifies installation on existing curbs and ensures water-tightness
  • Engineered with compression spring operators to provide smooth, easy, one-hand operation, regardless of size
  • Automatic hold-open arm locks the cover in the open position to ensure safe egress
  • Overlapping cover design, full welded corners on cover and curb, EPDM rubber gasket, and fully insulated cover and curb ensure weather-tightness and energy efficiency
  • Constructed with corrosion resistant materials to provide many years of trouble free, dependable service
  • Heavy gauge construction and positive latching mechanism maintain building security

Specifications:

  • Cover and Frame: 11 gauge (2.3 mm) aluminum
  • Cover: Brakeformed, hollow-metal design with 1″ (25 mm) concealed fiberglass insulation, 3″ (76 mm) beaded, overlapping flange, fully welded at corners, and internally reinforced for 40 psf (195 kg/m2) live load.
  • Curb: 4″ (102mm) in height, breakformed hollow-metal design with 1″ (25 mm) concealed fiberglass insulation, 2-5/8″ (67 mm) mounting flange and 1-1/2″ (38 mm) apron, fully welded at corners. Stainless steel anchor clips are included.
  • Gasket: Extruded EPDM rubber gasket permanently adhered to the cover.
  • Hinges: Heavy-duty pintle hinges with 3/8″ (9 mm) type 316 stainless steel hinge pins.
  • Latch: Slam latch with interior and exterior turn handles and padlock hasps.
  • Lift Assistance: Compression spring operators enclosed in telescopic tubes. Automatic hold-open arm with grip handle release.
  • Finish: Aluminum Mill Finish
  • Hardware: Engineered composite compression spring tubes and steel compression springs packed in grease. Type 316 Stainless steel hinges. All other hardware is zinc plated/chromate sealed.

**Turnaround time on the Bilco L-50VM VersaMount Hatch is 2-3 weeks**

Downloads:

Architect Drawing

Specifications

Installation Instructions

Product Video:

Click ‘here’ to see more Bilco roof hatches and accessories available through CRS and ‘here’ to go to the manufacturer’s site!

If you have any questions about this item or would like special pricing for bulk orders or custom sizes, please call Commercial Roofing Specialties at 1-(800) 267-2308 and ask for an E-Commerce Representative.
